VDN110 Series | High-Performance V/F Control VFD | 0.75kW – 2.2kW Compact AC Drive
The VDN110 Series is a new generation of high-performance compact frequency converters, independently developed with advanced V/F control technology. Designed with a modular architecture, this drive offers an excellent balance of high torque, high precision, and high reliability in an exceptionally compact, low-temperature-rise package. It integrates powerful functions including simple PID, built-in PLC (programmable logic controller), programmable output terminals, and an RS485 interface, providing users with a versatile and efficient speed regulation solution for small-power three-phase asynchronous motors.
Technical Parameter
Key technical advantage
- Modular & Compact Design: Features a next-generation modular design that results in a very small footprint and low temperature rise, making it ideal for space-constrained control panels and OEM applications.
- High Low-Frequency Torque: Delivers exceptional torque performance even at low speeds. Performance tests show the VDN110-2R2G3 model can achieve over 100% rated torque at 1Hz (e.g., 14.94 N.M output for a 14.8 N.M rated 2.2kW motor), ensuring powerful startup for demanding loads.
- Fast Dynamic Response: Capable of rapid acceleration and deceleration. Tests demonstrate that the drive can bring a 2.2kW motor under heavy load to a stop in just 1.3 seconds, highlighting its excellent dynamic control characteristics.
- Integrated Intelligence: Combines multiple powerful control functions in one compact unit, including a simple PID controller for process control and a built-in PLC for logic sequencing, reducing the need for external devices.
- Quiet Operation: Engineered for low-noise performance. When powering a motor at 50Hz, the drive system operates quietly, contributing to a better working environment.
- Flexible Connectivity: Equipped with a standard RS485 Modbus-RTU interface and programmable output terminals, allowing for easy integration into automation networks and flexible I/O configuration.
Avaliable Product List
FAQ
What is the main difference between the VDN110 and the VDN60 series?
While both are compact drives for small power applications, they target different performance needs. The VDN60 focuses on Sensorless Vector Control (SVC) for higher starting torque and precision. The VDN110 focuses on high-performance V/F control with a modular, ultra-low temperature rise design and features like a built-in simple PLC, making it exceptionally reliable and easy to integrate into systems requiring basic logic control.
How does the low-frequency torque of the VDN110 compare to standard V/F drives?
Standard V/F drives often struggle to provide adequate torque at very low frequencies (below 5Hz). The VDN110 is specifically engineered to overcome this. As demonstrated in performance tests, it can deliver over 100% of the motor’s rated torque at just 1Hz, ensuring reliable starting and stable operation for applications that require high torque at low speeds.
What does "built-in simple PLC" mean, and how can I use it?

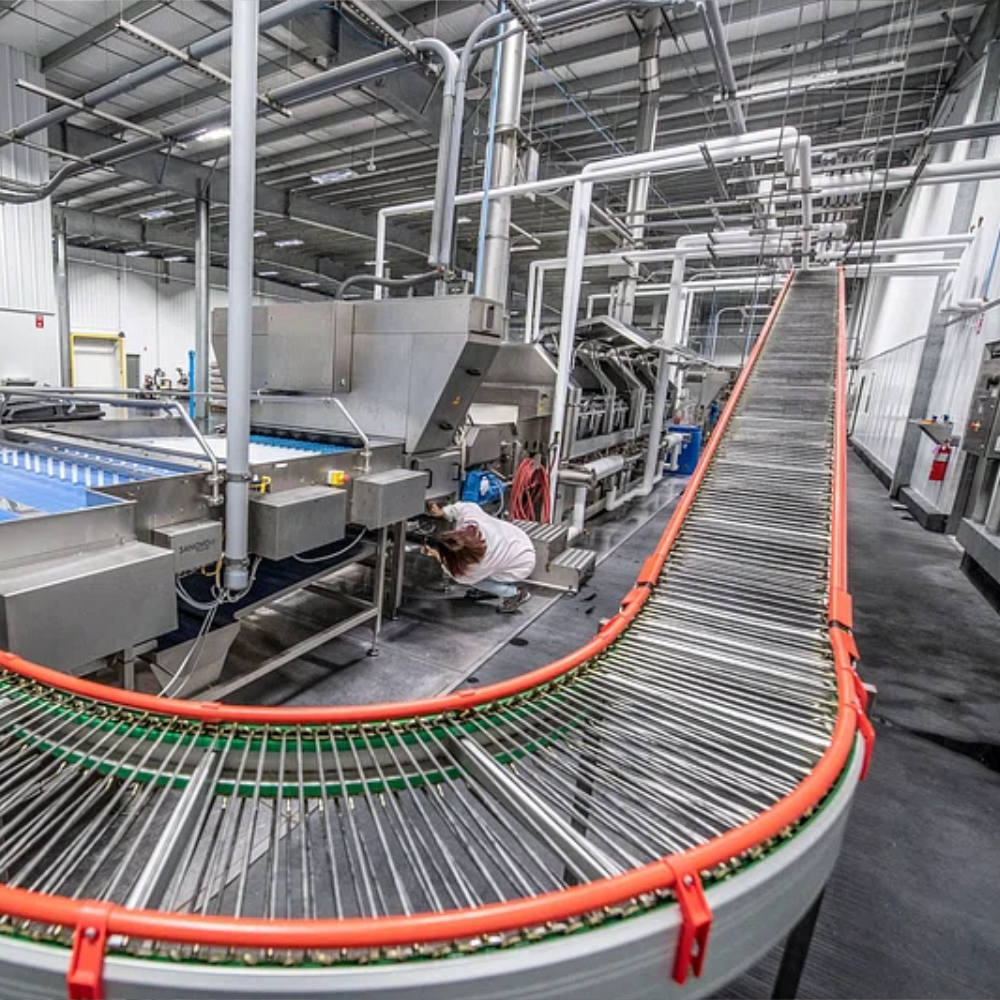

The built-in simple PLC function allows the VDN110 to execute a pre-programmed sequence of speeds and directions without requiring an external programmable logic controller. You can set up to multiple speed steps with individual run times and directions directly through the drive’s parameters. This is ideal for applications like simple cycling conveyors, mixers with soak cycles, or positioning tasks.
Can the VDN110 be used for closed-loop control applications?
Yes. The VDN110 features a built-in PID (Proportional-Integral-Derivative) controller. This allows it to be used for simple closed-loop process control, such as maintaining constant pressure in a small pumping system or constant tension in a winding application, by using an external sensor (e.g., pressure transducer or tension sensor) to provide feedback to the drive.
How fast can the VDN110 accelerate and decelerate?
The VDN110 is designed for excellent dynamic response. In performance tests, a 2.2kW VDN110 drive was able to stop a motor under heavy load in just 1.3 seconds. Acceleration and deceleration times are fully adjustable (from 0.1 to 6500 seconds) to match the requirements of your specific application.
